The SP series solid cube ice makers are made entirely of stainless steel.

They are top of the Kastel range and incorporate all the latest technology to ensure maximum efficiency and enduring performance. The ice cube is formed by water being sprinkled onto a horizontally mounted copper evaporator which then cools off forming high density, pure, crystal clear, solid ice cubes.

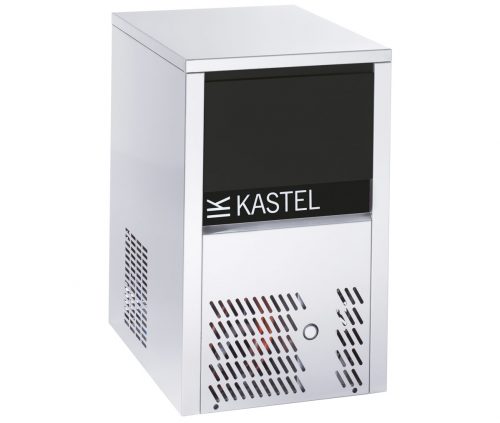

Models SP

KP-20-6

SP 25/6

Dimensions (WxDxH): 365x495x600 mm
24 hr production (21°C – 15°C ): 25 Kg
Storage capacity: 6 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 500 W

KP-20-6

SP 30/6

Dimensions (WxDxH): 365x495x690 mm
24 hr production (21°C – 15°C ): 30 Kg
Storage capacity: 10 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 600 W

  • 36 gr - L42 x A45 mmIce cube dimensions (WxDxH):
    42x45 mm
KP-37.15-45.15-50.25

SP 37/15

Dimensions (WxDxH): 500x585x685 mm
24 hr production (21°C – 15°C ): 37 Kg
Storage capacity: 15 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 700 W

KP-37.15-45.15-50.25

SP 45/15

Dimensions (WxDxH): 500x585x685 mm
24 hr production (21°C – 15°C ): 45 Kg
Storage capacity: 15 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 700 W

KP-37.15-45.15-50.25

SP 50/25

Dimensions (WxDxH): 500x585x795 mm
24 hr production (21°C – 15°C ): 50 Kg
Storage capacity: 25 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 800 W

KP60-80-100

SP 60/40

Dimensions (WxDxH): 740x605x965 mm
24 hr production (21°C – 15°C ): 60 Kg
Storage capacity: 40 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 1050 W

KP60-80-100

SP 80/40

Dimensions (WxDxH): 740x605x965 mm
24 hr production (21°C – 15°C ): 80 Kg
Storage capacity: 40 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 1050 W

KP60-80-100

SP 90/60

Dimensions (WxDxH): 740x605x1065 mm
24 hr production (21°C – 15°C ): 90 Kg
Storage capacity: 60 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 1200 W

KP100.60-140.75-175.75

SP 130/75

Dimensions (WxDxH): 840x745x1120 mm
24 hr production (21°C – 15°C ): 130 Kg
Storage capacity: 75 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 1700 W

KQ-250

SP 140

Dimensions (WxDxH): 865x560x730 mm
24 hr production (21°C – 15°C ): 140 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 1900 W

Usable ice bin:
ST S 250, ST S 400, ST SD 600, ST C 50, ST C 300, ST C 600, ST C 1000

KQ-450

SP 280

Dimensions (WxDxH): 1255x595x860 mm
24 hr production (21°C – 15°C ): 280 Kg
Ice type: Cubetto pieno 36 gr
Cooling system: A/W
Total power: 2700 W

Usable ice bin:
ST S 400, ST SD 600, ST C 600, ST C 1000

Technical photos SP

Stainless steel body
Stainless steel body
ELECTROMECHANICAL CONTROL
ELECTROMECHANICAL CONTROL
REMOVABLE AND CLEANABLE AIR FILTER (OPTIONAL)
REMOVABLE AND CLEANABLE AIR FILTER (OPTIONAL)
POLYURETHANE FOAM INSULATION
POLYURETHANE FOAM INSULATION
EASY MAINTENANCE
EASY MAINTENANCE
